Widget Class Reference

Base class which defines methods common for all Nictk internal widgets (not windows nor menus). More...

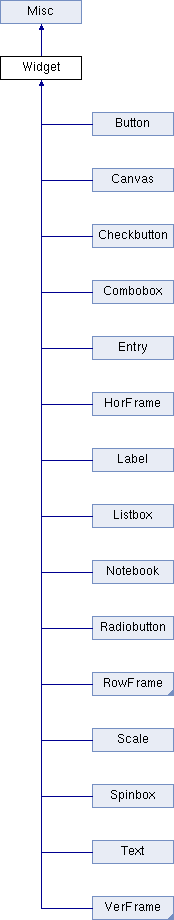

Inheritance diagram for Widget:

Public Member Functions
def	__init__ (self, parent, x, y, w, h, pad, ctor, **kw)
	The constructor. More...
def	activate (self)
	Sets the state of the widget to NORMAL. More...
def	deactivate (self)
	Sets the state of the widget to DISABLED. More...
def	destroy (self)
	Overrides the BaseWidget method, unmapping the widget if its parent is a _embedVerFrame. More...
def	enabled (self)
	Returns True if the widget is enabled. More...
def	get_content (self)
	Returns the content of the widget as a string. More...
def	hide (self)
	Hides the widget. More...
def	init_content (self, content)
	Sets the content type for the widget. More...
def	resize (self, x=None, y=None, w=None, h=None, pad=None)
	Changes the dimensions of the widget. More...
def	set_content (self, content)
	Sets the content of the widget. More...
def	show (self)
	Shows a previously hidden widget. More...
def	visible (self)
	Returns True if the widget is visible. More...
Public Member Functions inherited from Misc
def	bind (self, sequence=None, func=None, add=None)
	Redefines the tk.Misc.bind() method. More...
def	config (self, cnf=None, **kw)
	Configures resources of a widget. More...
def	get_config (self, key)
	Returns the value for the key resource. More...
def	get_winfo (self, key)
	Returns the widget info for the item key. More...
def	has_option (self, opt=None)
	Returns True if the widget admits the given option. More...
def	parent (self)
	Returns the widget parent. More...
def	toplevel (self)
	Returns the widget toplevel container (a Window or Main). More...
def	unbind (self, sequence, funcid=None)
	Redefines the tk.Misc.unbind() method. More...
def	winfo_bh (self)
	Returns the height of the widget bounding box. More...
def	winfo_bpad (self)
	Returns the list of the four pad amounts (E-N-W-S) of the widget with respect to its bounding box. More...
def	winfo_bw (self)
	Returns the width of the widget bounding box. More...
def	winfo_bx (self)
	Returns the x coordinate of the widget bounding box topleft corner. More...
def	winfo_by (self)
	Returns the y coordinate of the widget bounding box topleft corner. More...
def	winfo_height (self)
	Returns the widget height. More...
def	winfo_width (self)
	Returns the widget width. More...
def	winfo_x (self)
	Returns the x coordinate of the topleft corner of the widget with respect to the parent. More...
def	winfo_y (self)
	Returns the y coordinate of the topleft corner of the widget with respect to the parent. More...

Additional Inherited Members
Static Public Attributes inherited from Misc
def	winfo_h = winfo_height
	Alias for winfo_height() More...
def	winfo_w = winfo_width
	Alias for winfo_width() More...

Detailed Description

Base class which defines methods common for all Nictk internal widgets (not windows nor menus).

It overrides the tkinter class.

Constructor & Destructor Documentation

__init__()

def __init__	(		self,
			parent,
			x,
			y,
			w,
			h,
			pad,
			ctor,
		**	kw
	)

The constructor.

Reimplemented in Canvas, Text, Notebook, HorFrame, VerFrame, RowFrame, VerScrollFrame, RowScrollFrame, Label, Button, Entry, Checkbutton, Radiobutton, Listbox, Combobox, Scale, and Spinbox.

Member Function Documentation

activate()

def activate

(

self

)

Sets the state of the widget to NORMAL.

The widget can interact with mouse and keyboard. If the widget is a container all its children are set to NORMAL.

deactivate()

def deactivate

(

self

)

Sets the state of the widget to DISABLED.

The widget is grayed and cannot interact with mouse and keyboard. If the widget is a container all its children are set to DISABLED.

destroy()

def destroy

(

self

)

Overrides the BaseWidget method, unmapping the widget if its parent is a _embedVerFrame.

So it triggers an <Unmap> event resizing the parent.

enabled()

def enabled

(

self

)

Returns True if the widget is enabled.

get_content()

def get_content

(

self

)

Returns the content of the widget as a string.

If the content is an image returns the string "image".

hide()

def hide

(

self

)

Hides the widget.

The widget will not be displayed, but its data remain managed; use show() to newly display it.

init_content()

def init_content	(		self,
			content
	)

Sets the content type for the widget.

The set_content() and get_content() methods will then behave according to the type chosen. The warious widget constructors call this, so the user needs to call this only when he sets for the first time the widget content (if he didn't already it in the constructor).

Parameters

content

can be a string, a StringVar or an image (BitmapImage, PhotoImage).

resize()

def resize	(		self,
			x = None,
			y = None,
			w = None,
			h = None,
			pad = None
	)

Changes the dimensions of the widget.

Only the given values are updated. Be careful, because if you have packed other widgets with respect to this their position will change.

set_content()

def set_content	(		self,
			content
	)

Sets the content of the widget.

Parameters

content

you must supply a content compatible with that given in init_content().

Reimplemented in Combobox.

show()

def show

(

self

)

Shows a previously hidden widget.

visible()

def visible

(

self

)

Returns True if the widget is visible.

---

The documentation for this class was generated from the following file:

• C:/Users/ncass/Python/Nictk/Nictk/__init__.py
